Quick Details

Place of Origin: Guangdong, China (Mainland) Brand Name: GAUSS Model Number: Fiber optic Splitter

Connector: Without Connector Material: 304 Steel Fiber Type: G652D,G657A,G657A2

Fiber Diameter: Ribbon Operating Bandwidth: 1260~1650nm Insertion Loss: IL<0.2dB

Return Loss: > 55dB Operating Temperature: -40~85 Durability: >1000 matings

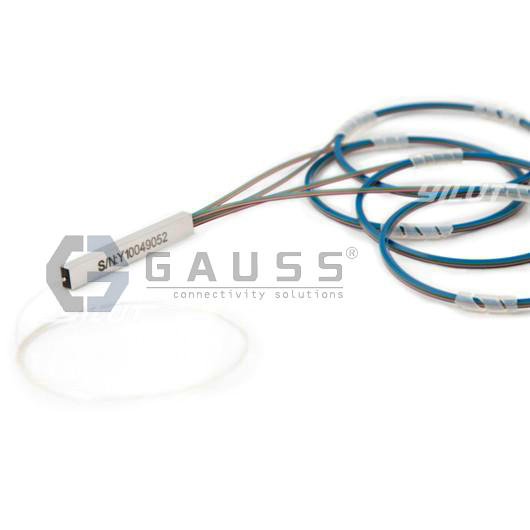

Bare fiber PLC Splitter features low insertion loss and Polarization Dependent Loss, Excellent Environmental Stability and Mechanical, Stability Telecordia GR-1221 and GR-1209 Components through TLC-Certified, Conform to YD1117-2001. Also, bare fiber PLC splitter can be used in FTTX, FTTH, PON, GEPON, LANCATV and Test Equipment. Bare fiber PLC Splitters include 1*N PLC splitter module and 2*N PLC splitter module. The common configurations are1x2, 1x4, 1x8, 1x16, 1x32, 1x64 and 2x2, 1x4, 2x8, 2x16, 2x32 bare PLC splitters. We can also provide special configurations and demands.

Features:

Good uniformity and low insertion loss .

Excellent Environmental Stability .

Excellent Mechanical .

Stability Telecordia GR-1221 and GR-1209 .

Specification:

Download PDF
