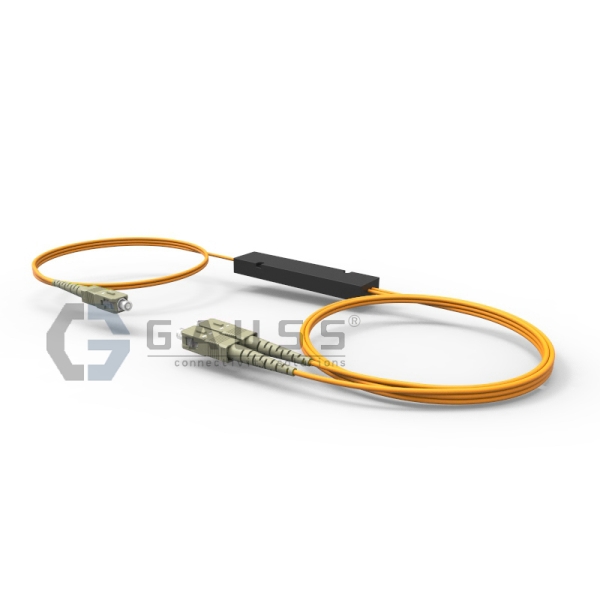

View Big ImageQuick Details
Place of Origin: Guangdong, China (Mainland) Brand Name: GAUSS Model Number: Fiber optic Splitter
Connector: SC Material: ABS Fiber Type: OM1,OM2,OM3,OM4
Fiber Diameter: 3.0mm Operating Bandwidth: 850~1300nm Insertion Loss: IL<3.7dB
Return Loss: > 35dB Operating Temperature: -40~85 Durability: >1000 matings
There are mainly two types of optical splitters.One is fused splitter (FTB),The other is Planar Lightwave Circuits (PLC Splitter).For the fused optical splitter,It can be divided into different ratios.such as 50/50 if the split is even, or 80/20 if 80% of the signal goes to one side and only 20% to the other.Planar Lightwave Circuits (PLC Splitter) can not work with different ratio rather than it provide a accurate splitting in high-desity output (like 8,16,32,64 outputs)However,The most common type of fiber optic splitter splits the output evenly,which is coming out with the same output of light signals.As a result of its great funciton,Optical splitter is a very important part in passive opitc networks (PON).
Features:
Good uniformity and low insertion loss .
Good uniformity and low insertion loss .
Excellent Environmental Stability .
Excellent Mechanical .
Stability Telecordia GR-1221 and GR-1209 .
Specification:
Download PDF
