Quick Details

Place of Origin: Guangdong, China (Mainland)               Brand Name: GAUSS                                  Model Number: Fiber optic Patchcotd

Connector: E2000-E2000                                                     Outer Jacket: OFNP/PVC/LSZH                 Fiber Type:   G652D,G657A,G657A2

Fiber Diameter: 3.0mm                                                         Housing Color: Blue                                      Insertion Loss: IL<0.2dB

Return Loss:  > 55dB                                                           Operating Temperature: -40~75                 Durability: >1000 matings

E2000 fiber optic connector has a push-pull coupling mechanism, with an automatic metal shutter in the connector as dust and laser beam protection.

One-piece design for easy and quick termination, used for high safety and high power applications. E2000 connector available for Singlemode PC, APC

and Multimode PC.

Features:

 Low insertion loss, high return loss.
 High dense connection, easy for operation.
 Good in repeatability and exchangeability.
 G652D,G657A,G657A2or customized.

 Standard: Telcordia GR-326-CORE, TIA/EIA and IEC.

Application:

  Gigabit Ethernet; Active device termination;

  Telecommunication networks; Video;
  Multimedia; Premise installations;
  Local area networks; FTTH FTTX applications; CATV.

---

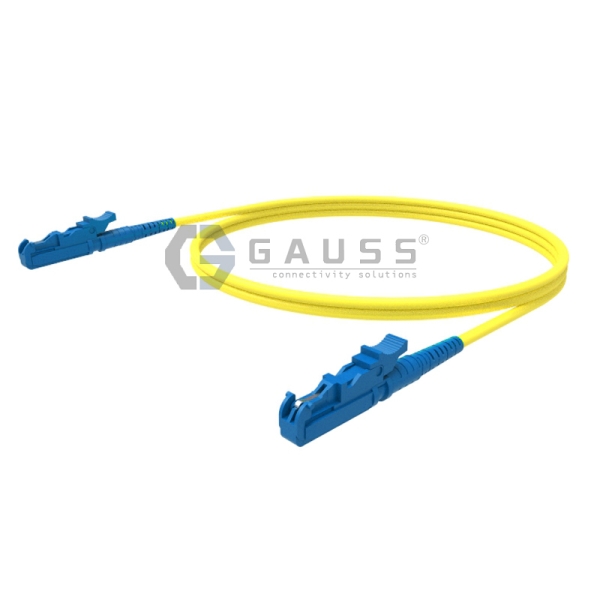

E2000/UPC-E2000/UPC Simplex SM 9/125um 3.0mm Patchcord

---

Other Products: LC-LC Duplex OM3 50/125um 2.0mm Patchcord  SC-FC Duplex MM Patchcord   ST-ST Duplex MM Patchcord
