Quick Details

Place of Origin: Guangdong, China (Mainland)                     Brand Name: GAUSS                                       Model Number: Fiber optic Patchcotd

Connector: MPO-LC                                                                    Outer Jacket: OFNP/PVC/LSZH                      Fiber Type:   OM4

Fiber Diameter: 900um                                                               Color: 12Colors                                                  Insertion Loss: IL<0.1dB~0.75dB

Return Loss:  MM> 20dB                                                            Operating Temperature: -40~75                     Durability: >1000 matings

MTP / MPO Patchcord are designed to high density multi fibers solutions,fit for different in-stallation environment and easy to

install between the trunk line,data centers and buildings.Our patch-cord are 100% factory tested and can meet your spe-cial requirements.

All the MTP/MPO connector com-pliance with Telcordia GR-1435-Core Compliant.

Features:

 High performance in IL&RL.
 4F,8F,12F, 24F or customized.
 Suitable for MTP/MPO application.

Application:

 40/100G Optical Modules Connectivity.
 Telecommunications subscriber loopData Center Cabling.
 Support 40/100G Network Cabling.
 Telecommunication Network.
 Industrial & Military.

---

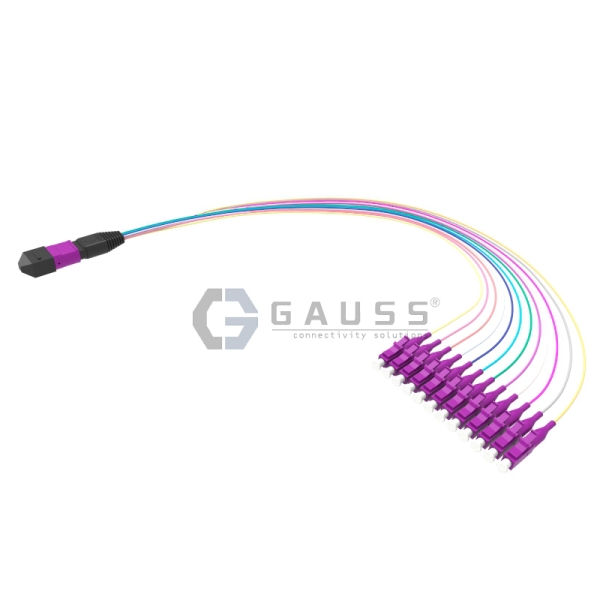

8/12Cores MPO to LC 900um OM4 Fiber Hydra Cable

---
