Quick Details

Place of Origin: Guangdong, China (Mainland)               Brand Name: GAUSS                                  Model Number: Fiber optic Patchcotd

Connector: LC Uniboot                                                         Outer Jacket: OFNP/PVC/LSZH                 Fiber Type:   G652D,G657A,G657A2

Fiber Diameter: 3.0mm/2.0mm                                            Housing Color: Blue                                     Insertion Loss: IL<0.2dB

Return Loss:  UPC> 55dB                                                    Operating Temperature: -40~75                Durability: >1000 matings

The LC-HD is a totally unique design which can further increase panel density over currently available solutions and allow for the highest density

possible. A gentle pull on the tab will disengage it from an extremely dense fiber optical panel. The pull tab is a perfect location to affix a connector

label to help in the quick identification of the connector.

Features:

 Low insertion loss, high return loss.
 High dense connection, easy for operation.
 Good in repeatability and exchangeability.
 G652D,G657A,G657A2or customized.

 Standard: Telcordia GR-326-CORE, TIA/EIA and IEC.

Application:

  Gigabit Ethernet; Active device termination;

  Telecommunication networks; Video;
  Multimedia; Premise installations;
  Local area networks; FTTH FTTX applications; CATV.

---

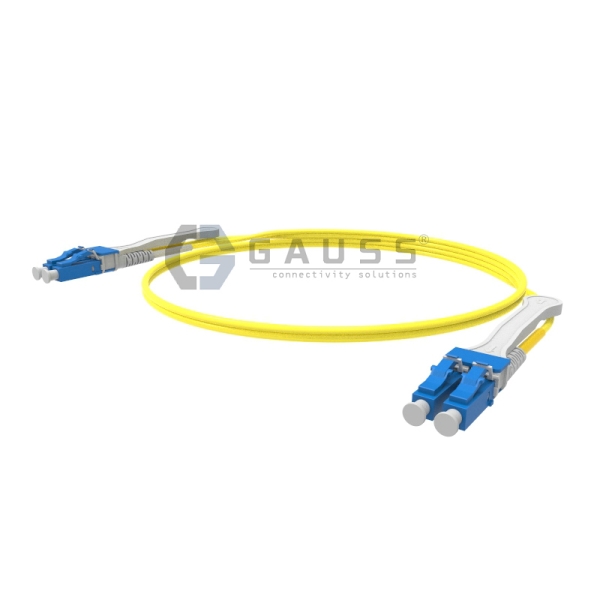

LC-LC Duplex With Pull-tab SM 9/125um 2.0mm Patchcord

---

Other Products: LC-LC Duplex OM3 50/125um 2.0mm Patchcord  SC-FC Duplex MM Patchcord   ST-ST Duplex MM Patchcord
