Quick Details

Place of Origin: Guangdong, China (Mainland)               Brand Name: GAUSS                                  Model Number: Fiber optic Patchcotd

Connector: LC Uniboot                                                         Outer Jacket: OFNP/PVC/LSZH                 Fiber Type:   OM1

Fiber Diameter: 3.0mm/2.0mm                                           Housing Color: Gray                                      Insertion Loss: IL<0.2dB

Return Loss:  PC> 35dB                                                      Operating Temperature: -40~75                 Durability: >1000 matings

LC Uniboot patch cord is a compact design base on LC connector. It is duplex patch cord but use single cable to connect each end.
Fiber optic duplex reversible uniboot connector allows the fiber polarity to be reversed at the time of cable assembly installation without exposing the

fibers or needing any tools. This not only provide consistent quality and convenience, but also ensure system performance and reduce installation time.

This unique design offers high efficiency and easier cable management.

Features:

 Low insertion loss, high return loss.
 High dense connection, easy for operation.
 Good in repeatability and exchangeability.

 Standard: Telcordia GR-326-CORE, TIA/EIA and IEC.

Application:

  Gigabit Ethernet; Active device termination;

  Telecommunication networks; Video;
  Multimedia; Premise installations;
  Local area networks; FTTH FTTX applications; CATV.

---

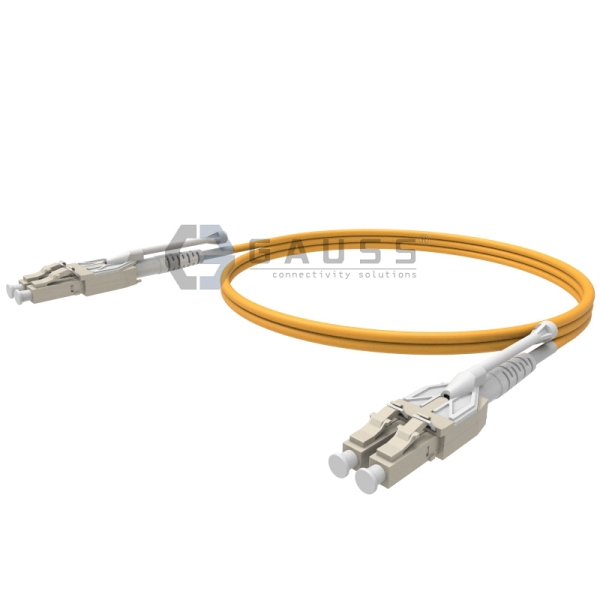

LC-LC Uniboot Switchable Pull-tab OM1 62.5/125  3.0mm Patchcord

---

Other Products: LC-LC Duplex OM3 50/125um 2.0mm Patchcord  SC-FC Duplex MM Patchcord  LC-LC Uniboot Switchable SM 9/125um 2.0mm Patchcord
