We supply FC fiber optic adapters, including square type, single D type and double D types, in single mode and multimode versions. All these adapters are with metal housing and ceramic sleeves, for multimode FC fiber adapter there is optional bronze housing types.

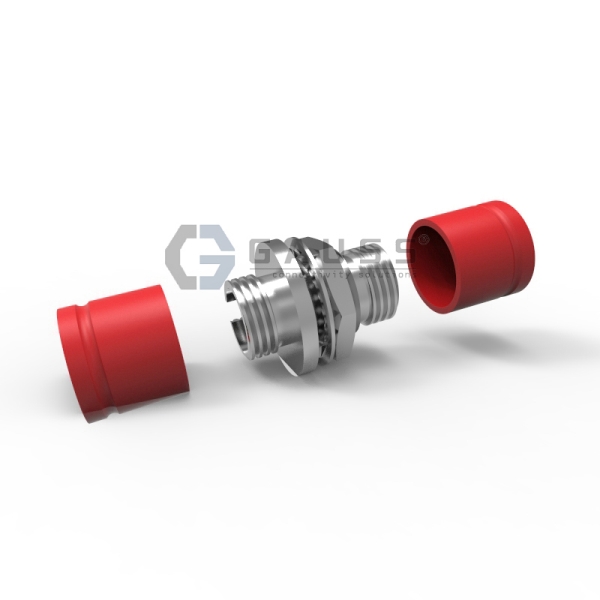

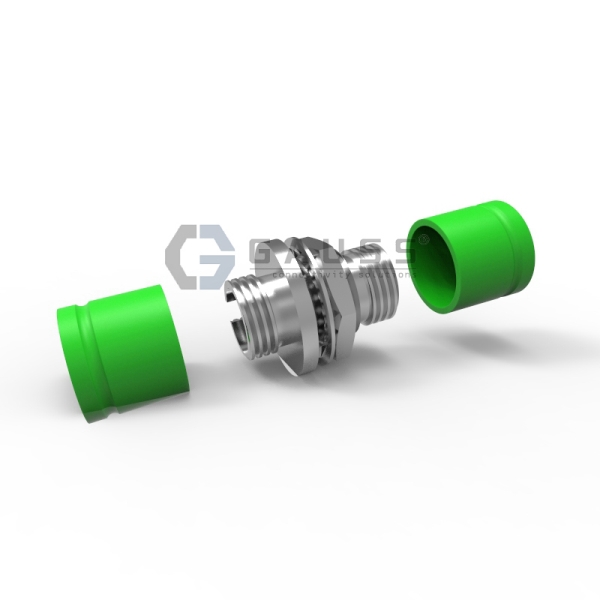

The FC square fiber optic adapter is available in the standard body styles with nickel plated brass or nickel plated zinc housing. FC round fiber optic adapters come with a choice of D Flange (ø8.85 x 7.95mm) or double D Flange (ø9.35 x 7.65mm), and feature nickel plated brass housing for corrosion resistance.

Features:

 Compliant with: IEC, JIS, Telcordia
 Convenience and ease of handling
 Optical performance 100% factory tested
 Flange or threaded mounting type
 Ceramic/Zirconia or phosphorous bronze sleeves

Application:

 Telecommunication networks
 FTTX, FTTH
 LAN, WAN, CATV networks
 Fiber communications, Data communication networks and processing, Industrial, Mechanical and Military.
 Active device termination

---

FC Simplex big D-type Adapter.pdf

---
