Quick Details

Place of Origin: Guangdong, China (Mainland)               Brand Name: GAUSS                                  Model Number: Fiber optic Pigtail

Connector: SC                                                                        Outer Jacket: OFNP/PVC/LSZH                 Fiber Type:   OM4

Fiber Diameter: 0.9mm                                                         Color: E-V                                                 Insertion Loss: IL<0.2dB

Return Loss:  > 35dB                                                            Operating Temperature: -40~75                Durability: >1000 matings

SC fiber optic pigtail, only one end is the connector, but the other end is an optical fiber breakage which is connected with the other by welding. It often appears

in the optical fiber terminal box for the connection between cable and the terminal device. Pigtail is classified to multimode and single-mode. Multi -mode

pigtail usually is orange and wavelength is 850nm for short-distance interconnection. Single-mode pigtail usually is yellow, there are two wavelengths,

1310nm and 1550nm, and transmission distance are 10Km and 40Km.

Features:

 Low insertion loss, high return loss.
 High dense connection, easy for operation.
 Good in repeatability and exchangeability.
 G652D,G657A,G657A2or customized.

 Standard: Telcordia GR-326-CORE, TIA/EIA and IEC.

Application:

  Gigabit Ethernet; Active device termination;

  Telecommunication networks; Video;
  Multimedia; Premise installations;
  Local area networks; FTTH FTTX applications; CATV.

---

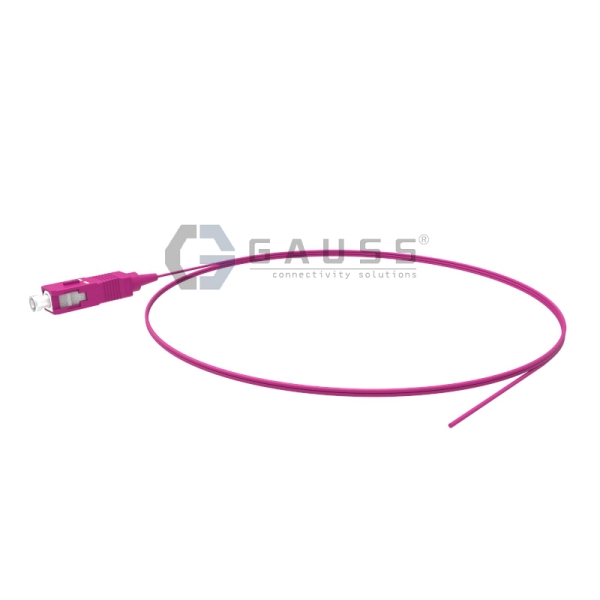

SC OM4 50/125um 900um Pigtail

---
