Quick Details

Place of Origin: Guangdong, China (Mainland)               Brand Name: GAUSS                                  Model Number: GJFJV

Fiber brand: Corning                                                             Outer Jacket: OFNP/PVC/LSZH                 Fiber Type:   Multi-Mode

Fiber Diameter: 2.0mm or 3.0mm                                        Color: Lime green                                       Attenuator:  Standard

Operating Temperature: -20°C~60°C                                 Certificate:  ISO,CE,UL,ROHS

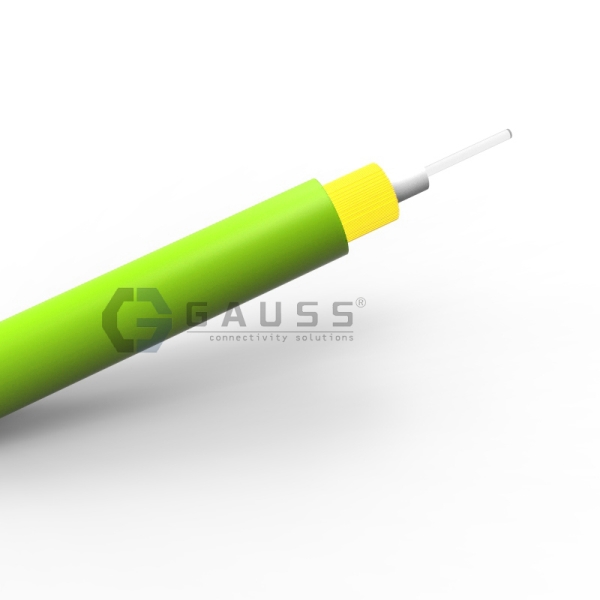

Multimode OM5 50/125um Simplex Cable

OM5 wideband multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of

850-950 nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s(up to 400m) and 100 Gb/s(up to 150m) and reduced fiber counts for higher speeds.
OM5 meets TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements while completely backward compatible with existing OM4 networks and applications. It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.

Features:

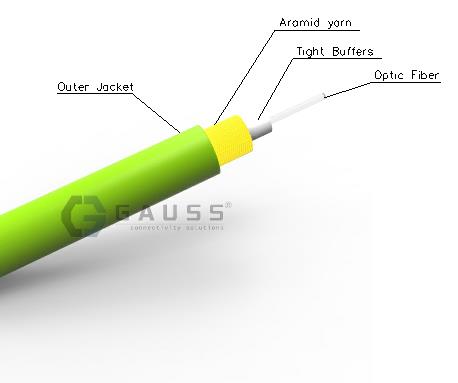

        900μm or 600μm tight buffer fiber, Aramid Yarn,Flame-retardant jacket.

        The outer jacket material have many advantages such as anti-corrosion, anti-water,                   anti-ultraviolet radiation,flame-retardant and harmless to environment etc.

        Tight buffer fiber ease of stripping.

        Suited to SM fiber and MM fiber.

Application:

       Optical fiber patchcord or pigtail.

        Indoor riser level and plenum level cable distribution.

        Interconnect between instruments, communication equipments.

        Sensing system.

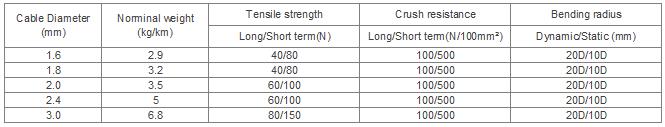

Technical Parameters:

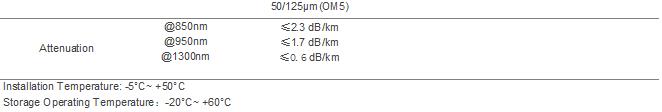

Optical Characteristics:

---

Download PDF
