Quick Details

Place of Origin: Guangdong, China (Mainland)               Brand Name: GAUSS                                       Model Number: GJBFJV

Fiber brand: Corning, YOFC,Draka                             Outer Jacket: OFNP/PVC/LSZH                  Fiber Type:   Simple-mode/Multi-Mode

Fiber Count: 1~12Core                                                         Color: Customized                                             Attenuator:  Standard

Operating Temperature: -20°C~60°C                                Certificate:  ISO,CE,UL,ROHS

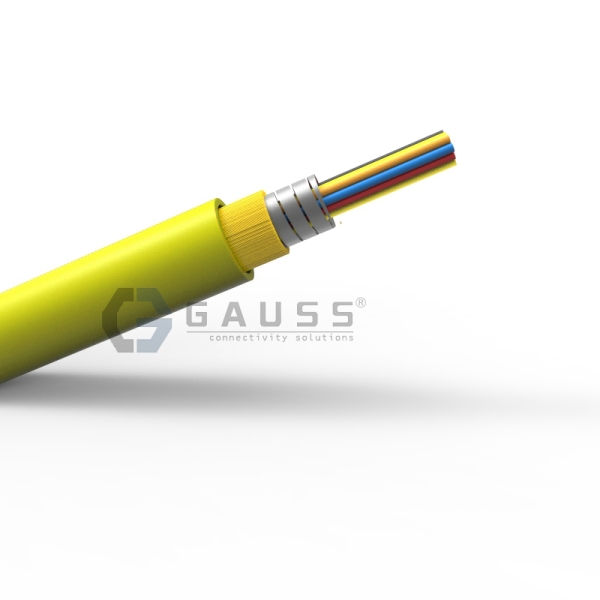

Multi core Distribution armored fiber optic cable

Armored Fiber Optic Cables can be run anywhere in a building in plenum to non- plenum environments and provide for an extremely well protected cable package ideally suited for harsh environments. The cable design offers the system designer a product that can be installed in high traffic areas where added mechanical protection and security are required. Available in 1 core ore strand to 12 core or strand in any length. The flexible interlocked armored cable design is also popular for retrofit applications and eliminates the need to install rigid conduit while still meeting building code guidelines.

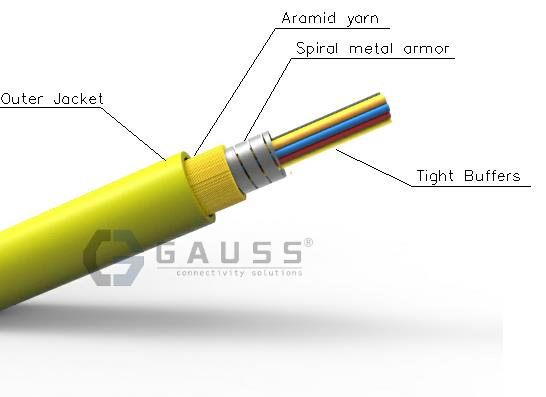

Features:

        Cale using high property aramid yarn,increasing tension property,and fit for long distance use.

        Cable using spiral metal armored layer with best crush property,and cable is very flexible and easy bend.

        The outer jacket material have many advantages such as anti-corrosion, anti-water,               anti-ultraviolet radiation,flame-retardant and harmless to environment etc.

        Tight buffer fiber ease of stripping.

        Suited to SM fiber and MM fiber.

Application:

       Used in FTTX,from residence to data center and cabling level and vertical,also used in FTTH cable.

        Used in the open field, connections between optical equipments.

        Used in base station,for BBU to RRU.

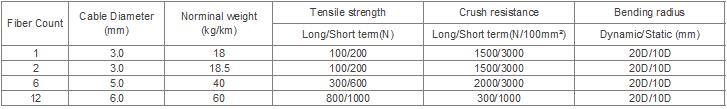

Technical Parameters:

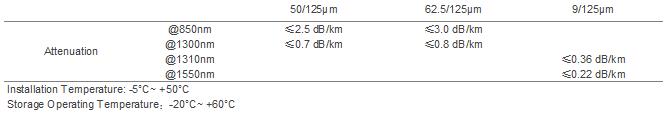

Optical Characteristics:

---
