Quick Details

Place of Origin: Guangdong, China (Mainland)                     Brand Name: GAUSS                                       Model Number: Fiber optic Patchcotd

Connector: MPO-LC                                                                    Outer Jacket: OFNP/PVC/LSZH                      Fiber Type:   G657A

Fiber Diameter: 2.0mm or 3.0mm                                             Color: Yellow                                                       Insertion Loss: IL<0.1dB~0.75dB

Return Loss:  SM> 60dB                                                            Operating Temperature: -40~75                       Durability: >1000 matings

For the best data transmission performance and high bandwidth management, choose the 8-Fiber MTP/MPO to LC Singlemode Fiber

Optic Fanout Cable. It is a solid choice for long distance data transmissions in 40G/100G/128G applications.

This fiber optic cable comes in a roller "Type-B" polarity. Rollover polarity is used primarily for connecting to switches and transceivers

in 40Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end.

Then 2 to 11, and so forth.

Features:

 Connector A: MPO female connector (No guide pins).
 Connector B: 4 Dupelx LC/UPC.
 40Gb pin-out configuration.

 Jacket Type: LSZH Rated (OFNR).

 Fiber Mode: SMF(9/125um)

 Fiber Count: 8 Fibers.

 Stable performance index by PIN fiexed position of connecting.

 High density which convenient for wiring and management system Comply with Telcordia GR-1435-CORE and RoHS standard.

Application:

 Data Centers with High Density Requirement.
 Fiber Channel Storage.
 Parallel Processing Applications.
 Telecommunications and Backbone Installations.

---

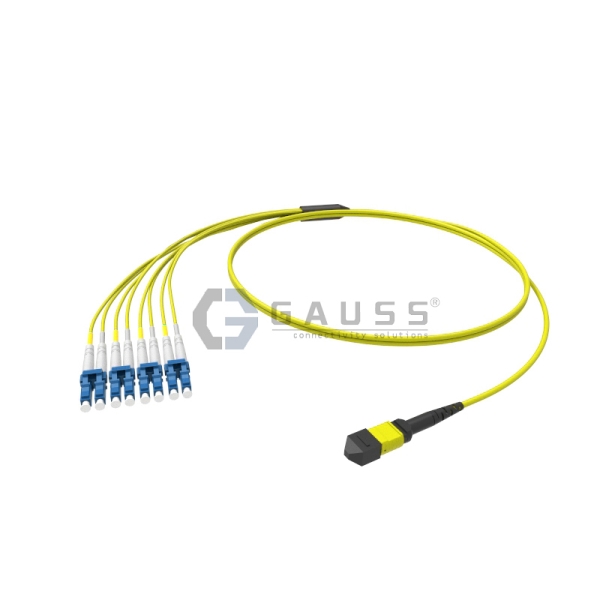

40G QSFP+ MPO-8x DLC SM Fan-out Cable

---
