Quick Details

Place of Origin: Guangdong, China (Mainland)               Brand Name: GAUSS                                  Model Number: Fiber optic Patchcotd

Connector: LC                                                                         Outer Jacket: OFNP/PVC/LSZH                  Fiber Type:   OM4

Fiber Diameter: 6.5mm or Other                                          Housing Color: E-V or Other                       Insertion Loss: IL<0.2dB

Return Loss:  PC> 35dB                                                      Operating Temperature: -40~75                  Durability: >1000 matings

12 core colorful pigtail can be classified to FC, SC, LC, MU and ST. The color of pigtail is Blue, Orange, Green, Brown, Gray, White, Red, Black,Yellow,

Purple, Pink, Aqua. With the High-quality ceramic ferrules,it has good conformity and low Insertion Loss.

Features:

 Low insertion loss, high return loss.
 High dense connection, easy for operation.
 Good in repeatability and exchangeability.
 OM4 50/125um or customized.

 Standard: Telcordia GR-326-CORE, TIA/EIA and IEC.

Application:

  Gigabit Ethernet; Active device termination;

  Telecommunication networks; Video;
  Multimedia; Premise installations;
  Local area networks; FTTH FTTX applications; CATV.

---

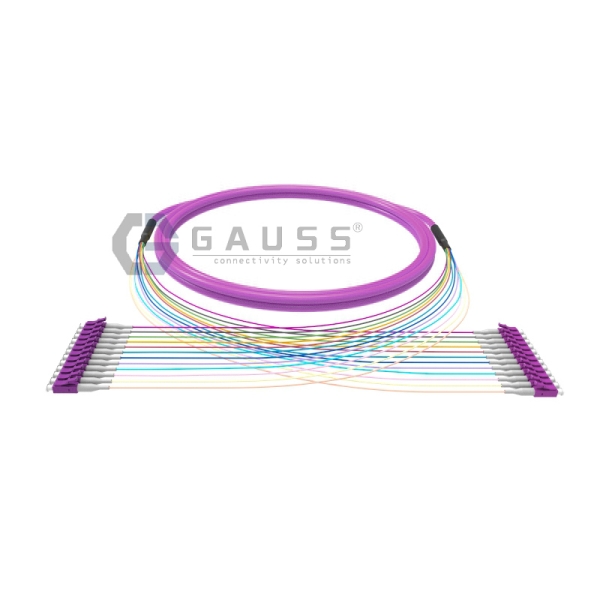

Distribution 12Fiber LC-LC OM4 Fan-out Fiber Cables

---
