Quick Details

Place of Origin: Guangdong, China (Mainland)               Brand Name: GAUSS                                         Model Number: Fiber optic Splitter

Connector: SC/APC                                                               Material: 304 Steel                                            Fiber Type:   G652D,G657A,G657A2

Fiber Diameter: 900um                                                        Operating Bandwidth: 1260~1650nm              Insertion Loss: IL<3.2dB

Return Loss:  APC> 65dB                                                  Operating Temperature: -40~85                        Durability: >1000 matings

---

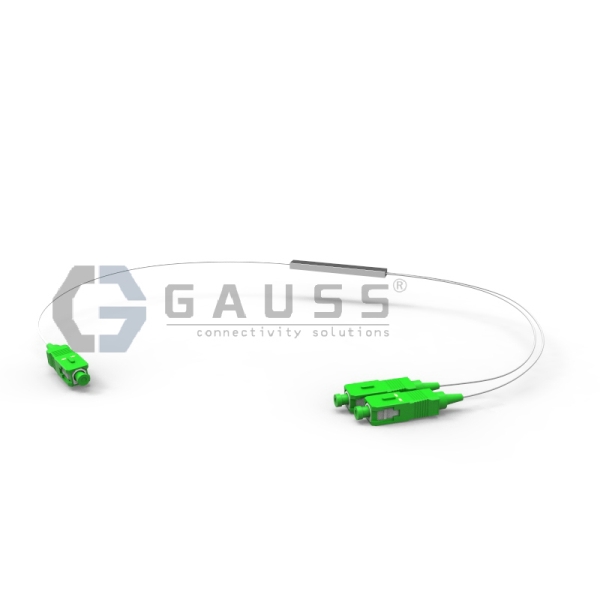

1x2 PLC Splitter Mini type,SM fiber,fiber optic cable OD:0.9mm pigtail,1m length, with SC/APC connector

PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.
Installation is simple using a variety of connector types or fusion splicing.

Features:

         Good uniformity and low insertion loss .

         Good uniformity and low insertion loss .

         Excellent Environmental Stability .

         Excellent Mechanical .

         Stability Telecordia GR-1221 and GR-1209 .

Specification:

---

Download PDF
