Quick Details

Place of Origin: Guangdong, China (Mainland) Brand Name: GAUSS Model Number: Fiber optic Splitter

Connector: SC/APC Material: ABS Fiber Type: G652D,G657A,G657A2

Fiber Diameter: 2.0mm Operating Bandwidth: 1260~1650nm Insertion Loss: IL<10.6dB

Return Loss: APC> 65dB Operating Temperature: -40~85 Durability: >1000 matings

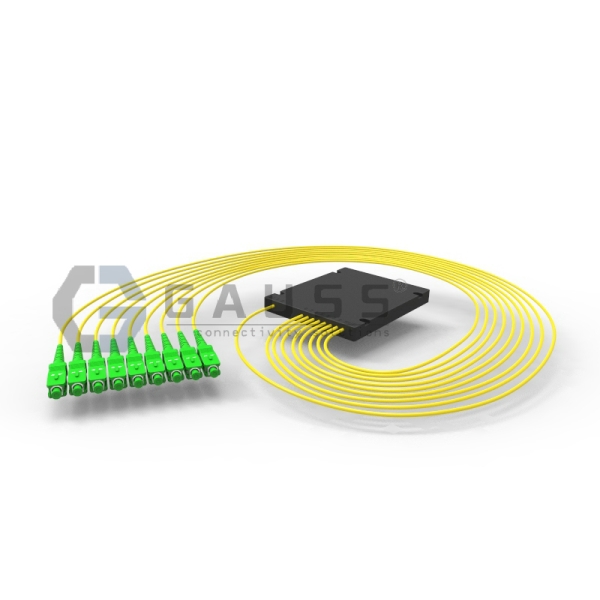

1x8 PLC Splitter ABS type,SM fiber,fiber optic cable OD:2.0mm pigtail,1m length, with SC/APC connector

PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.
Installation is simple using a variety of connector types or fusion splicing.

Features:

Good uniformity and low insertion loss .

Excellent Environmental Stability .

Excellent Mechanical .

Stability Telecordia GR-1221 and GR-1209 .

Specification:

Download PDF
