Quick Details

Place of Origin: Guangdong, China (Mainland)                     Brand Name: GAUSS                                          Model Number: 100M-SXS-20KM

Transmission Speed: 10/100Mbps                                         Wavelength: TX1310/RX1550（nm）              Fiber Type: Single fiber,SM

Applications Distance: 20km                                                    Color: Black                                                             Power input:  5V

Operating Temperature: -20°C~55°C                                      Certificate:  CE RoHS FCC                                  Ethernet interface: RJ-45

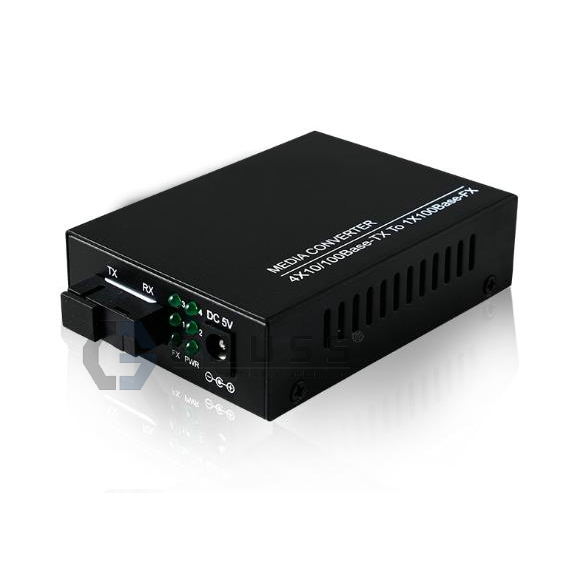

10/100M Ethernet Media Converter Single fiber,SM 20KM

Ethernet media converters are designed to transmit and receive 10/100Mbps data over multimode or single mode optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.

Features:

        Auto negotiation function allows UTP ports to auto select 10/100M and Full Duplex or Half Duplex..

        The UTP port supports the connection of MDI/MDI-X auto crossover.

        Singlemode Fiber: the max distance up to 20km.

        Supporting the max 1536 byte Ethernet packet.

        Supporting flow control.

        Adopting internal power supply.

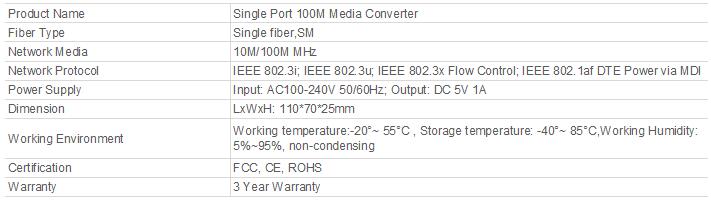

Specification:

---

Download PDF
