Quick Details

Place of Origin: Guangdong, China (Mainland)                     Brand Name: GAUSS                                          Model Number: CAR-SM-1G

Transmission Speed: 10/100/1000Mbps                               Wavelength: TX1310/RX1550（nm）              Fiber Type: Double fiber,SM

Applications Distance: 20km                                                    Color: Silvery                                                           Power input:  5V

Operating Temperature: -20°C~55°C                                      Certificate:  CE RoHS FCC                                  Ethernet interface: RJ-45

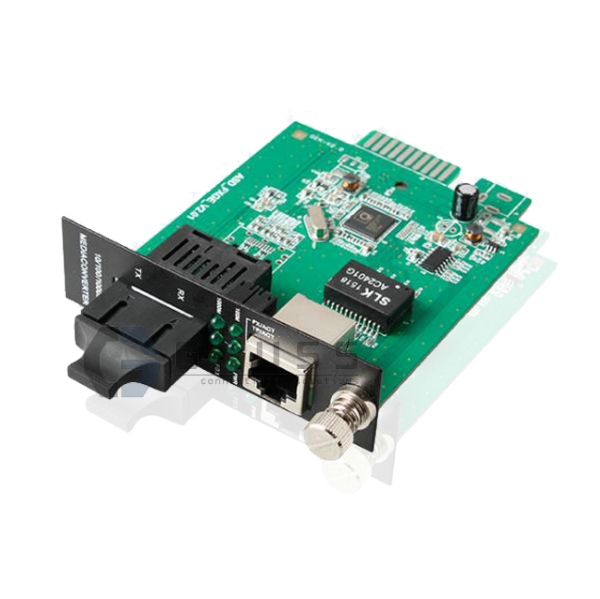

Card Type Gigabit Ethernet Media Converter

Adaptive Card-type Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 20 km via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.

Features:

        Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX.

        10/100/1000M media converter with SFP slot is available.

        Supporting full-duplex and half-duplex and its auto-sensed.

        Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation.

        Supporting the transmission of extra-long VLAN packets.

        Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets.

        Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber.

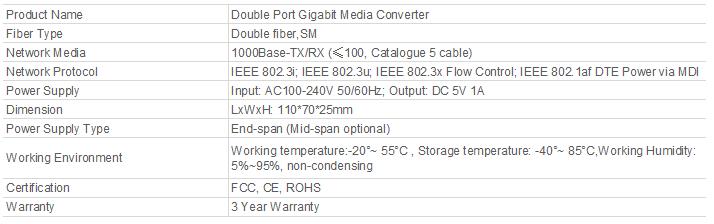

Specification:

---

Download PDF
