Quick Details

Place of Origin: Guangdong, China (Mainland)                     Brand Name: GAUSS                                          Model Number: 16V1D-20T-1080P

Video Number of Channel:16 Channel                                   Interface: BNC port,FC port                                Fiber Type: Single fiber,SM

Transmission Distance: 20km                                                 Bandwidth: 10MHz                                                Power input:  5V

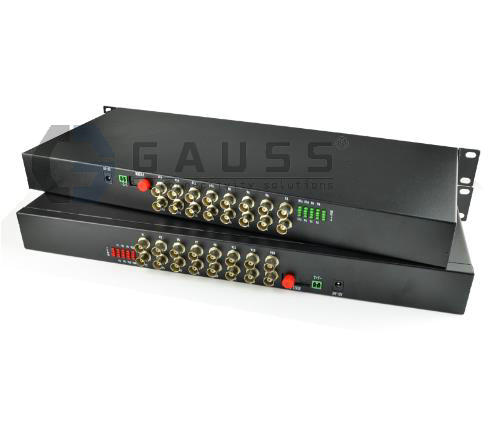

16ch Video+1ch Reverse direction data over fiber video transceiver

The converter can simultaneously transmit 16 ch HD-CVI/TVI/AHD over one multimode or single-mode optical fiber. LED indicates instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It is without loss and non-compression real time transmission..

Features:

        1/2/4/8/16-ch unidirectional HD-SDI video over one fiber.

        Range from 19.4Mb/s to 1.485Gb/s.

        Support all SMPTE 295M standard, 143Mb/s - 360Mb/s.

        Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard.

        Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant).

        150m automatic cable equalization, all the 1.485 Gb/s rate below(Belden 1694A).

        Optional network management system.

        LED status indicators monitor the critical parameters.

        Support hot swap,.

        Support stand-alone, 1U rack mount and 4U rack mount

Packing & Delivery
Packing

1pc is packed in one box.
Carton packaging for 16 Ch Video+1 Ch Reverse Direction Data over fiber optic audio video transceiver.If your order quantity is large enough, we can customize it according to your requirements, no matter in cartons or wooden cases.

Delivery
By sea,air and railway transport.We can choose the type of transportation according to the needs of the customers.

---
