Quick Details

Place of Origin: Guangdong, China (Mainland)                  Brand Name: GAUSS                                   Model Number: Fiber optic Cassette

Connector: MTP-LC                                                                  Material: SPCC,SECC                                  Fiber Type:  Single mode or multimode

Fiber Diameter: 900um                                                           Color: 12Core                                                 Insertion Loss: IL<0.1dB~0.75dB

Return Loss:  SM> 60dB,MM> 20dB                                     Operating Temperature: -40~75                 Durability: >1000 matings

MTP/MPO panels are designed to enable a fiber net work to be installed and commissioned in the short possible time.All the components are
pre-assembled and easy to be installed to the shelf.It is a perfect solution for optical fiber installations and management.1U MPO Fiber Optic
Patch Panel can accommodate 4pcs of MPO cassette modules. MPO cassette modules can install duplex LC adapters with the capacity  up to
96 fibers maximum.

Features:

 Easy for installation and operation.
 1U 19''  standard structure.
 Sliding tray design.
 Available for the installation of LC adapters
 Capacity  up to 48 &96 fibers maximum.

Application:

 Data Center LAN/SAN
 Telecommunications subscriber loop
 Fiber to the home (FTTH)
 High density cable wiring system
 High integrated equipment and devices

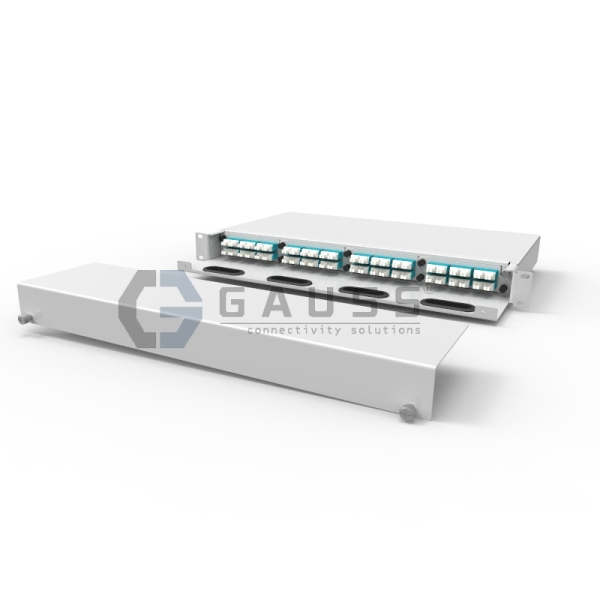

1U Rack Mount MTP / MPO Patch Panel ,Accepts 4 Modules
