Quick Details

Place of Origin: Guangdong, China (Mainland)                  Brand Name: GAUSS                                   Model Number: Fiber optic Cassette

Connector: MTP-LC                                                                  Material: SPCC,SECC                                  Fiber Type:  Single mode or multimode

Fiber Diameter: 900um                                                           Color: 12Core                                                 Insertion Loss: IL<0.1dB~0.75dB

Return Loss:  SM> 60dB,MM> 20dB                                     Operating Temperature: -40~75                 Durability: >1000 matings

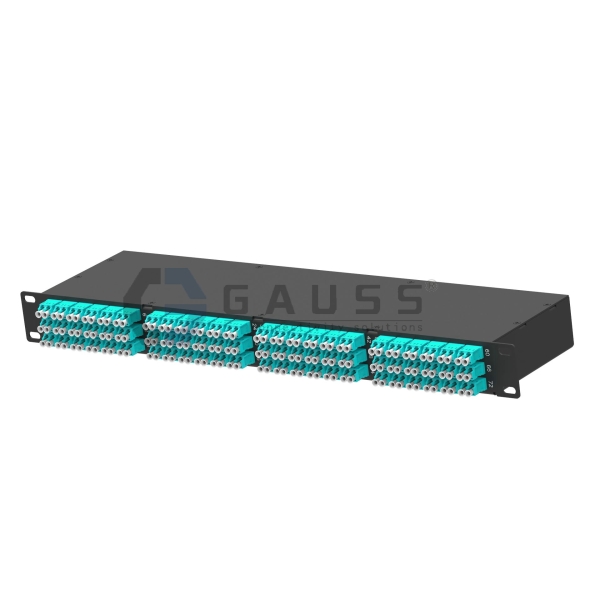

Ultra High Density (UHD) UltraSlimline Panel is specially designed to accommodate high density cabling in high end data center and telecommunication central office environment. The shallow depth of the UHD UltraSlim Panel makes it suitable for low depth copper racking systems or telecommunications ODFs. Design accommodates extraction free shuttered LC Dual adapters allowing for smooth patching and easy LC port access. The 1U 19“, 144 fiber MPO UltraSlim Panel contains factory controlled and tested MPO - LC assembly to deliver optical performance and reliability.Low loss Premium MPO and LC Premium versions are offered featuring significantly improved low insertion losses for demanding low power budget, high speed networks. Front and rear cable management facilitates provides a neat and tidy solution for managing incoming and exiting cables.

Features:

 Compact - 1U Size with 114.5mm depth saves space and makes the panel compatible with copper racking system.
 Ultra High Density 1U panel can scale up to 144 discrete LC front ports and up to 12 MPO rear interfaces.
 Rapid Deployment - Factory pre-populated panel saves installation time - 1 x click to connect 12 fibers using MPO interface.
 Rear and front fiber cable management accessories.
 Available in OS1/2  and OM4 fiber grades.

 Optimised Performance - Low loss MPO.

 Reliability - 100% Tested.

Application:

 Data communication applications.
 Data Centre infrastructure.
 Storage Area Network - Fiber Channel.
 40/100 Gbps Protocols compatible

Ultra Density MTP/MPO Patch Panel
