Quick Details

Place of Origin: Guangdong, China (Mainland)                  Brand Name: GAUSS                                   Model Number: Fiber optic Enclosure

Connector: MTP-LC                                                                  Material: SPCC,SECC                                  Fiber Type:  Single mode or multimode

Core : 12/24Core                                                                      Insertion Loss: IL<0.1dB~0.75dB              Return Loss:  SM> 60dB,MM> 20dB

Operating Temperature: -40~75                                            Durability: >1000 matings

Wall mount fiber optic enclosure is pre-configured with one LGX compatible LC to MPO cassettes. It is designed to support patching and splicing for up to 12/24 fibers.
LGX compatible fiber optic LC to MPO cassette fits in fiber optic rack mount enclosures to support 10G networking. TheLGX cassette is factory terminated with multimode MM OM3 50/125 fiber and protected by an aluminum alloy cassette that is black powder coated to protect against wear, corrosion, impact and weather. There are 12/24 LC ports on front and one MPO port on the rear for interconnecting from cassette to cassette. No splicing, polishing, field termination or testing is required.

Features:

 Dual doors with separate locking options for flexibility and security.
 MPO LGX cassettes compatible.
 Optional splice tray and holder (ordered separately).
 All major connector types are supported.
 Available empty, with adapters, or with adapters/splice trays/pigtails pre-installed.

 Reliability - 100% Tested.

Application:

 Co-Location/Customer Premise.
 Hub / OTN Sites.
 Telecommunications Closets.
 Campus / Enterprise environments.

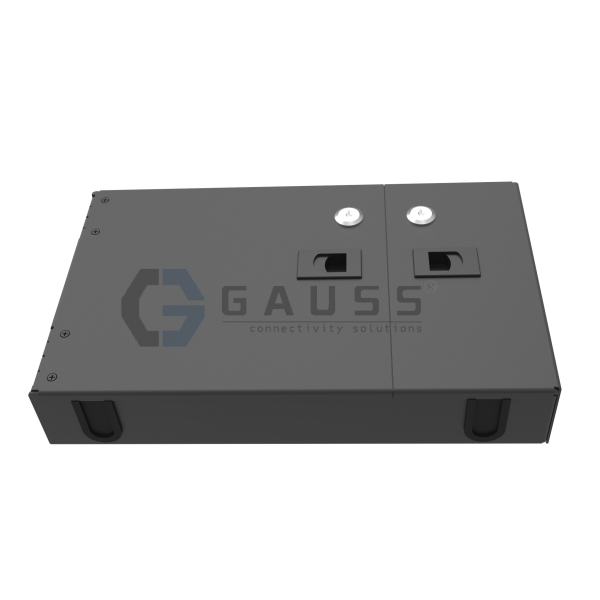

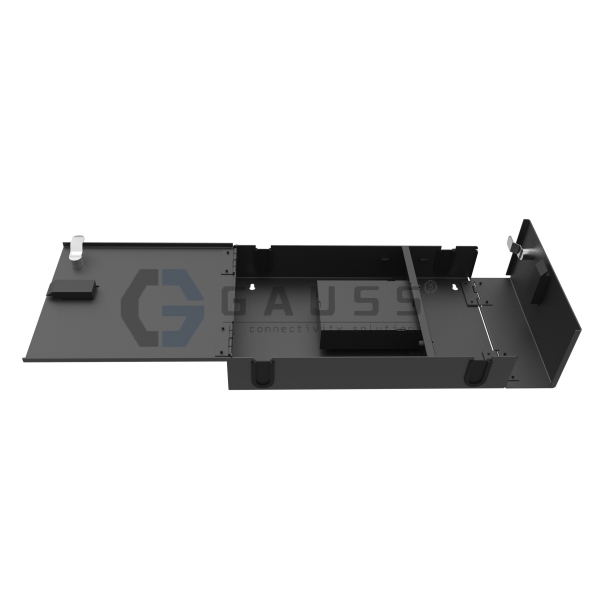

MPO Fiber Optic Wall Mount Enclosure with 1 Cassettes
