Quick Details

Place of Origin: Guangdong, China (Mainland)                Brand Name: GAUSS                                 Model Number: Fiber optic connector

Connector: MU                                                                       Type: PC/UPC/APC                                     Mode: Singlemode or Multimode

Fiber Diameter: 0.9mm,2.0mm or 3.0mm                         Color: Brown                                                 Insertion Loss: IL<0.2dB

Return Loss:  SM>65dB,MM> 35dB                                     Operating Temperature: -40~75               Durability: >1000 matings

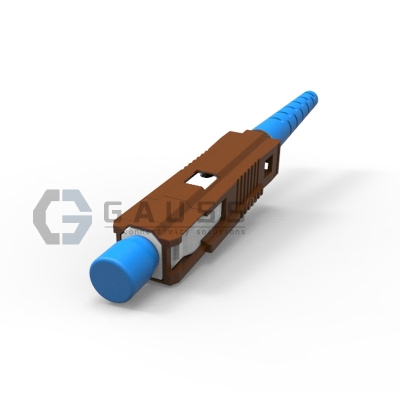

MU Fiber Optic Connectors are used in the fiber optical communication filed because its good performance, these MU fiber Connectors are fully

compatible with IEC 61 754-6 and suitable to use in fiber optic communication filed like CATV, LAN, SONET/SDH, ATM and WDM applications.

Features:

 Low insertion loss
 High return loss
 Ease of installation
 Low cost
 Reliability
 Low environmental sensitivity
 Ease of use

Application:

  CATV, metro test equipment; FTTH;
 Telecommunication networks;
 Local area networks (LAN);
 Wide area networks (WAN);
 Premise installations;
 Data processing networks;
 Video and military active device termination.
 Optical Distribution Frame
 Optical Network Equipments

MU 2.0MM SIMPLEX CONNECTOR.pdf
